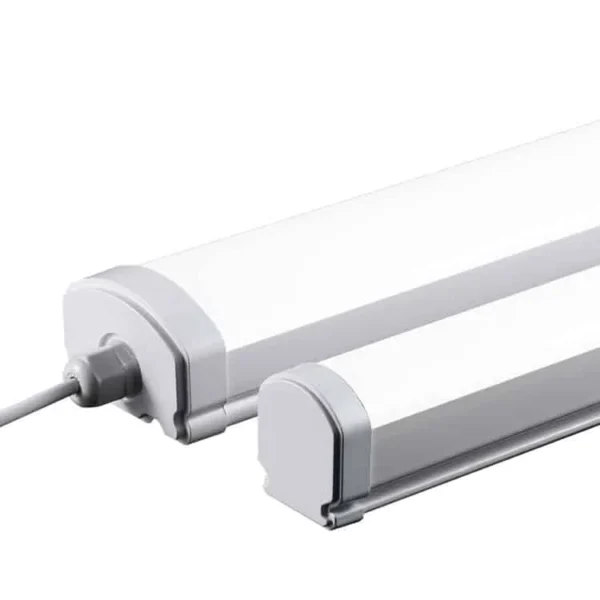

Weatherproof Led Batten Lights 60cm/120cm/150cm

Weatherproof Led Batten Lights 60cm/120cm/150cm

LLS-TP-K Series led batten lights are designed with a polycarbonate body, polycarbonate cover, and steel clips for moisture places like garages, parking lots, and warehouses. 40w 1200mm batten is the standard one, 600cm and 1500cm optional. It is ok to do the motion sensor or microwave radar sensor, and emergency kits version (30% power duration 1-3 hours).

  • Ref Model: LLS-TP-K Series
  • Length: 2ft (600mm), 4ft (1200mm), 5ft (1500mm)
  • Wattages: 20W 40W 60W
  • Protection grade: IP65 Waterproof; IK08
  • Materials: PC Bottom+ Milky PC Cover
  • Luminaire lumens:100-140lm/W
  • Installation mounted: Surface mounted/ wall mounted/ ceiling mounted /Suspended
  • Dimmable: No, but 0-10V / Triac dimmable / DALI dimmable is optional
  • Free flicker: Yes
  • Manufacture warranty: 3/5 years
  • Origin: Made in India
Category:

Description

Parameters

Order model

Wattage

Dimension

Lumens

Color temperature

Ik rating

IP Rate

Installation

Input voltage

DATASHEET
LLS-TP-2F2D 24W L600*W75*H51mm 2400-2700lm 3000K,4000K,6500K IK08 IP65 Suspended/wall/Surface mounted 100/200-240VAC 50/60Hz Download
LLS-TP-4F2D 48W L1200*W75*H51mm 4800-5400lm 3000K,4000K,6500K IK08 IP65 Suspended/wall/Surface mounted 100/200-240VAC 50/60Hz Download
LLS-TP-5F2D 60W L1500*W75*H51mm 6000-7200lm 3000K,4000K,6500K IK08 IP65 Suspended/wall/Surface mounted 100/200-240VAC 50/60Hz Download

Specification

Materials & Finished

  • Housing: ABS materials as a standard, weatherproof, fireproof, flame retardant.
  • Cover: Frosted PC Cover shade as standard, Good toughness, no yellowing, strong flame retardancy.
  • Surface-mounted part: Steel

Photometric Data

  • Led driver type: Constant current driver
  • Input voltage: 100/220-240VAC 50/60Hz
  • THD:<15%
  • Power factor: 0.5 as standard, >0.9 is optional
  • Efficiency:>88%
  • IP Grade: IP20
  • Warranty: 2/3years

Optical

  • Led chips: Bridgelux SMD
  • Lumens:120-140lm/W
  • Color temperature: 3000K warm white; 4000K daylight; 6000-6500k cold white
  • LM80
  • SDCM:<5%

    Option
