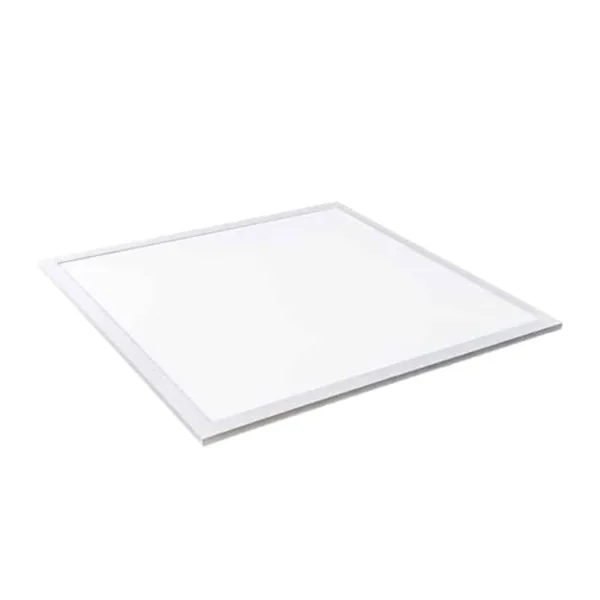

Waterproof LED Panel IP65 600×600

Waterproof LED Panel IP65 600×600

Buy through different sizes ( 1×1, 1×2, 2×2, 1×4, and 2×4) waterproof LED panel lights with LUMIOS. Those back-lit IP65 LED panels adopt an integrated waterproof structure, which can better prevent water vapor, oil fumes, mosquitoes, and dust from entering the lamp body. Suspended, clip-recessed and surface-mounted installation for your option. Waterproof panels are normally used for moisture environments like kitchen or bathroom and so. It is cheaper than waterproof edeglit panel light.

  • IP Rating: Ip65 waterproof
  • Power: 18W 24W 40W 60W
  • Thickness: 30mm
  • Lumen: 100Lm/W
  • Light source: Bridgelux/Samsung 2835 SMD
  • Power factor: >0.9
  • CRI : >80
  • Frame: Square shape flat aluminum trim, strip/flat type, white finished
  • Diffuser/cover: Polystyrene PS Cover
  • Led driver: external isolated driver, LiFud, Eaglerise Brand
  • Installation: Suspended, Recessed, Surface-mounted
Category:

Description

Parameters

Product Code

Wattage

Inch

Dimension

Lumens

CRI(Ra)

Power factor

IP Rating

Color Temperature

Input voltage

Spec sheet
LLS-PL3030-18WF 18W±5% 1×1 ft 295*295*30mm 1800lm >80 >0.9 IP65 3000K4000K6500K 200-240VAC 50/60Hz Download
LLS-PL6030-24WF 24W±5% 2×1 ft 295*595*30mm 2400lm >80 >0.9 IP65 3000K4000K6500K 200-240VAC 50/60Hz Download
LLS-PL-6060-40WF 40W±5% 2×2 ft 595*595*30mm 4000lm >80 >0.9 IP65 3000K4000K6500K 200-240VAC 50/60Hz Download
LLS-PL12030-40WF 40W±5% 1×4 ft 1195*295*30mm 4000lm >80 >0.9 IP65 3000K4000K6500K 200-240VAC 50/60Hz Download
LLS-PL12060-60WF 60W±5% 2×4 ft 1195*595*30mm 6000lm >80 >0.9 IP65 3000K4000K6500K 200-240VAC 50/60Hz Download

Specification



Materials & Finished

  • Heat sink (Housing): Metal bottom, 2.5mm thickness-3mm thickness, white finished.
  • Frame: Square shape flat aluminum trim, strip/flat type, white finished as standard,
  • Diffuser/cover: Polystyrene PS Cover, no yellowing, high light transmittance.
  • Lens: High temperature resistant optical lens, uniform light emission
  • PCB: High thermal conductivity aluminum substrate
  • Light source: Bridgelux/Samsung SMD LED Chips
  • Led driver: Over-voltage, over-temperature, anti-surge protection brand isolated external driver

Photometric Data

  • Dimension:295*295mm, 295*595mm, 595*595mm, 1195*295mm, 1195*595mm optional.
  • Input voltage:220-240VAC 50/60Hz
  • Power Factor:>0.9
  • LED Chips: SMD2835
  • Color rendering index:>80
  • Lumens:100lm/W
  • THD:<15%
  • SDCM:<5
  • Efficiency:>89%
  • Beam angle: 120° wide
  • Color temperature: 3000K/4000K/6500K
  • Working temperature:-25℃/+55℃

    Options

    • TRIAC/0-10V/DALI dimmable
    • Emergency backup (30% power with 1hrs 2hrs or 3 hours duration)
    • Clips for clip-recessed installation
    • Steel ropes for suspended installation
    • Surface frame for surface-mounted installation

    Install & Wiring

    You can download the installation guide here

    Application & Project Case

    Commercial places:

    • swimming pools
    • seafood markets
    • car wash station
    • hotel bathroom and pool areas

    Industrial sites

    • Food processing plants
    • underground parking lots

    Home settings

    • bathrooms
    • kitchens
    • balconies
