Description
Parameters
Product Code |
Wattage |
Dimension |
Lumens |
Color temperature |
Power factor |
CRI(Ra) |
SDCM |
Track head |
Input voltage |
DATASHEET |
| LLS-TL-40WB | 2*20W±5% | Φ100*150mm | 3900-4400lm | 3000K, 4000K,6500K | >0.9 | >90 | <5 | 2wires/3wires/4wires | 110/120V-240VAC 50/60Hz | Download |
| LLS-TL-50WB | 2*25W±5% | Φ100*150mm | 4500-5500mm | 3000K, 4000K,6500K | >0.9 | >90 | <5 | 2wires/3wires/4wires | 110/120V-240VAC 50/60Hz | Download |
| LLS-TL-60WB | 2*30W±5% | Φ100*150mm | 5750-66000lm | 3000K, 4000K,6500K | >0.9 | >90 | <5 | 2wires/3wires/4wires | 110/120V-240VAC 50/60Hz | Download |
Specification
Materials & Finished

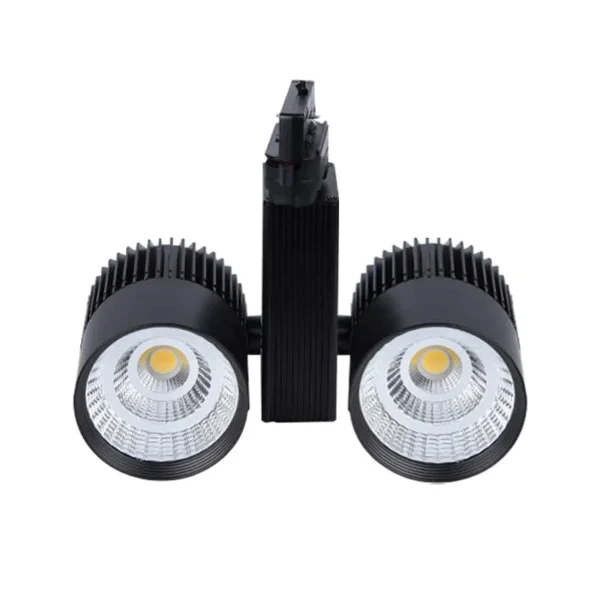

- Heat sink: die-cast aluminum body, black/white powder-coated.
- Reflector: deep design, silver
- Driver box: Metal
- Track head: Plastic, 2 wires as standard, 3wires, and 4wires optiona
Photometric Data
- Control Gear brand: LiFud/Eagleries/Osram as standard
- Input voltage: 220-240VAC 50/60Hz
- THD:<10%
- Power Factor: >0.9
- Efficiency:>87%
- Certificates: CE TUV CB, ENEC
- Warranty: 3/ 5 year
Optical
- Led chips brand: Bridgelux / Osram COB chips
- Lumens: 120-140lm/W
- CRI:>92
- Color temp: 3000K warm white, 4000-4500k cold white, 5700-6200k cold white
- LM80
- Lifetime: >100000hrs
Options
- Triac dimmable/0-10V/DALI dimmable
- 3wires/4wires/6wires(3phases)opitons
Install & Wiring
Before installing the track lights, you must install the correct rails on the ceiling or wall, or you can hang the track. The 2-wire track head adapts to the 2-wire track strip, 3-wire 4-wire track strip corresponds to lamps with a 3-wire track head and 4-wire track head respectively.
- Triac dimmable track light wiring and installation (2 wires)
- 0-10V dimmable /DALI track light install and wiring ( 4 wires)
Application & Project Case
- Supermarkets
- Shopping mall
- Offices
- hotels, restaurants
- bars
