Trimless Square Downlights Single/Double/LLS-DL-V-01

Trimless Square Downlights Single/Double/LLS-DL-V-01

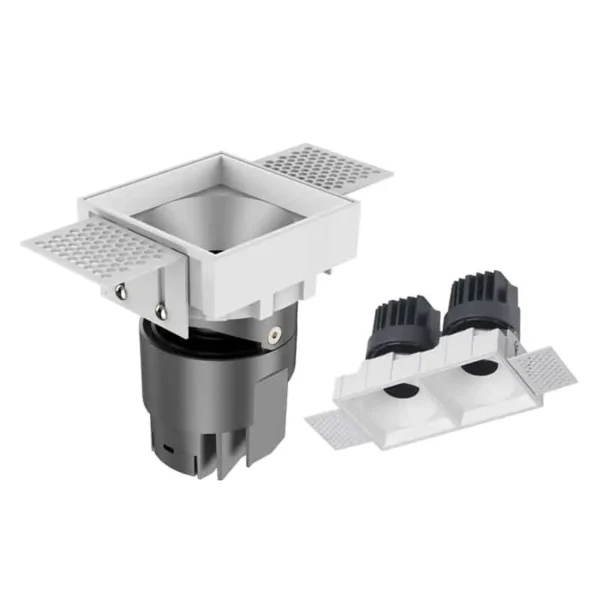

These recessed square downlights are trimless designs with single and double heads on the base of recessed square spotlights . It is an adjustable 30° direction design, the reflectors can be matt black, white, matt silver, gun black, or gold options. They are widely used for different commercial lighting projects.

Shape: Square and rectangle
Installation: recessed mounted ceiling
Lumens: 90-110lm/W
UGR:<17 anti-glare
Control way: ON/OFF, dimmable available if needed
Working life:>50000Hrs
Manufacturer warranty: 3/5 years
Trade term: Ex-work, FOB, or CIF
Payment terms: Bank transfer, Paypal, Western Union
Origin: Made in India
Lead time: 3-15 days after finished deposits
MOQ: 30pcs/ model

Category: led Downlights

Description
Reviews (0)

Description

Parameters

Image	Order model	Wattage	Dimension	Cut out	Lumens	Color temperature	Beam angle	Power Factor	Input voltage	DATASHEET
	LLS-DL-7WV-01	7W±5%	LW65*H85mm	W55*L58mm	650-770lm	3000K,4000K,6500K	15/24/36/55°	>0.5 or 0.9	220-240VAC 50/60Hz	Download
	LLS-DL-10WV-01	10W±5%	LW85*H85mm	W75*L78mm	900-1100lm	3000K,4000K,6500K	15/24/36/55°	>0.5 or 0.9	220-240VAC 50/60Hz	Download
	LLS-DL-12WV-01	12W±5%	LW85*H85mm	W75*L75mm	1100-1200lm	3000K,4000K,6500K	15/24/36/55°	>0.5 or 0.9	220-240VAC 50/60Hz	Download
	LLS-DL-15WV-01	15W±5%	LW105*H124mm	W95*L98mm	1350-1500mm	3000K,4000K,6500K	15/24/36/55°	>0.5 or 0.9	220-240VAC 50/60Hz	Download
	LLS-DL-20WV-01	20W±5%	LW105*H134mm	W95*L98mm	1800-2000lm	3000K,4000K,6500K	15/24/36/55°	>0.5 or 0.9	220-240VAC 50/60Hz	Download
	LLS-DL-2x7WV	2X7W	115*65mm	105*58mm	1200-1400lm	3000K,4000K,6500K	15/24/36/55°	>0.5 or 0.9	220-240VAC 50/60Hz	Download
	LLS-DL-2x10WV	2X10W	155*85mm	145*78mm	1800-2000lm	3000K,4000K,6500K	15/24/36/55°	>0.5 or 0.9	220-240VAC 50/60Hz	Download
	LLS-DL-2x12WV	2X12W	155*85mm	145*78mm	2200-2400lm	3000K,4000K,6500K	15/24/36/55°	>0.5 or 0.9	220-240VAC 50/60Hz	Download
	LLS-DL-2x15WV	2X15W	195*105mm	185*98mm	2700-3000lm	3000K,4000K,6500K	15/24/36/55°	>0.5 or 0.9	220-240VAC 50/60Hz	Download
	LLS-DL-2x20WV	2X20W	195*105mm	185*98mm	3800-4200lm	3000K,4000K,6500K	15/24/36/55°	>0.5 or 0.9	220-240VAC 50/60Hz	Download

Body & Finished

Heat sink: die-cast aluminum body, black powder-coated.
Reflector: PMMA, different color options
Trimless hardware: metal with a hole, easy to fix by screws.

Control Gear/Led driver

Control Gear brand: LiFud/Eagleries as standard, Osram/Philips drivers are optional.
Input voltage: 220-240VAC 50/60Hz
THD:<10%
Power Factor: 0.5 as standard, >0.9 PF optional.
Efficiency:>85%
Certificates: CE TUV CB, ENEC
Warranty: 3/5 years

Optical

Led chips brand: Bridgelux /Osram / Citizen
Lumens: 120-140lm/W
CRI:>90
Color temp: 3000K warm white, 4000-4500k cold white, 5700-6200k cold white
LM80
Lifetime: >100000hrs

Zigbee smart controller for Phone APP, Google Home, and AMAZON Alexa.
Phase dimming /0-10V/DALI Dimmable
Low voltage DC12V/DC24V/DC36V/DC48V/60V
Emergency battery backup.

installed into a wide range of ceiling types including thicknesses from 1mm to 35mm. Just open a bigger hole than the diameter of the light body.
