Description
Parameters
Order model |
Wattage |
Dimension |
Cut out |
Lumens |
Color temperature |
Input voltage |
CRI(Ra) |
Work-life |
Module Qty |
DATASHEET |
| LLS-DLG-9WP*1 | 9W±5% | L90*W90mm | L75*W75mm | 800-900lm | 3000K, 4000K,6500K | 100-240VAC 50/60Hz | >90 | >50000Hrs | Single | Download |
| LLS-DLG-9WP*2 | 18W±5% | L170*W90mm | L155*W75mm | 1600-1800lm | 3000K, 4000K,6500K | 100-240VAC 50/60Hz | >90 | >50000Hrs | Double | Download |
| LLS-DLG-15WP*1 | 15W±5% | L115*W115mm | L95*W95mm | 1300-1500mm | 3000K, 4000K,6500K | 100-240VAC 50/60Hz | >90 | >50000Hrs | One head | Download |
| LLS-DLG-15WP*2 | 30W±5% | L245*W115mm | L225*W95mm | 2600-3000lm | 3000K, 4000K,6500K | 100-240VAC 50/60Hz | >90 | >50000Hrs | Twin | Download |
| LLS-DLG-25WE*1 | 25W±5% | L140*W140mm | L125*W125mm | 2200-2500lm | 3000K, 4000K,6500K | 100-240VAC 50/60Hz | >90 | >50000Hrs | One head | Download |
| LLS-DLG-25WP*2 | 50W±5% | L250*W145mm | L230*W125mm | 4400-5000lm | 3000K, 4000K,6500K | 100-240VAC 50/60Hz | >90 | >50000Hrs | Doubleheaders | Download |

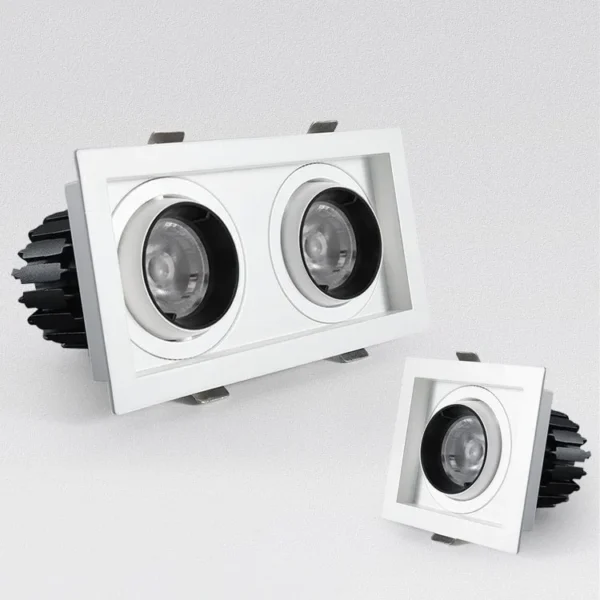

Specification
Material and finished
- Heat sink: Fins pure aluminum radiator, black powder sprayed. Fast heat dissipation. 360° rotation and 30° adjustable beam angle.
- Outer frame: Square/ rectangle aluminum trim, white powder coated.
- Lens/cover: clear lens cover, good light, and shadow effect, anti-yellowing, 24° beam angle.
- Transformer: DONE Brand isolated driver as the standard version, but Philips/Osram/LIFUD/BOKE brand available if needed.
- Led chips: Bridgelux CRI COB LED Chips standard solution. CREE/CITIZEN available.
- Mounting Clips: Metal body, strong strength, easy to do recessed installation
- Cables & wires: UL#22AWG cable with fast connectors.
- Package: White neutral packing. It is ok to do a color box with LOGO
Electrical & Optical
- Operating voltage:100-240VAC 50/60Hz or 220-240VAC 50/60Hz.
- Power Factor:>0.5 for DONE Driver or >0.9 for other brand
- CRI:>90 (Max97)
- Lumens:90lm-100lm/W output.
- SDCM:<5 (<3 available)
- Efficiency:>87%
- IP Grade: IP22 Indoor use
- Beam angle: 24° Narrow beam
- IK Rating: IK07
- THD:<20 as standard, <15 or <10 available
- Surge protection: 1-2KV
- Working life:>50000Hrs
- Working temperature:-25℃/+55℃
- Warranty:2/3/5 Years.
- Color temperature: 2700K-3000K Warm white, 4000-4500K Daylight, 6000-6500K cold white
Options
- Zigbee Smart controller
- Dimming (PWM/0-10V/DALI Dimmable)
- Low voltage input voltage AC/DC12V/DC24V/DC36V/DC48V/DC60V
- Emergency Kits (30% power with 1hours 2hours 3hours last)
Installation
Fastly recessed installation after open square or rectangle hole on the ceiling, fitting is working for the thickness of ceiling 5mm-50mm.
