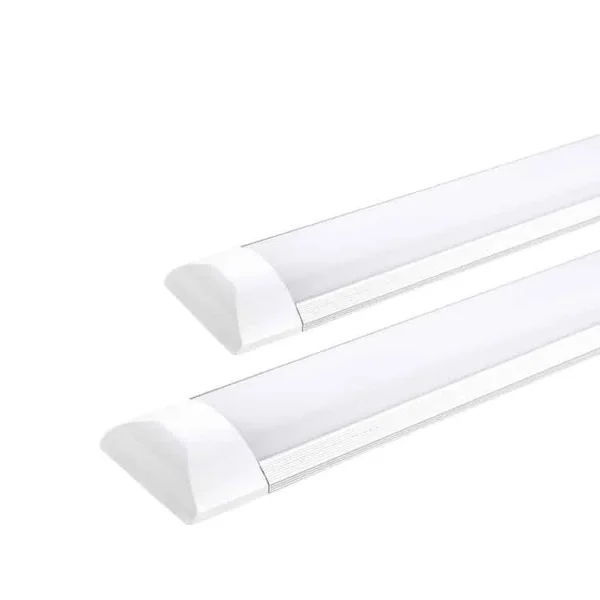

Slim LED Batten Lights IP44 600/1200/1500mm

Slim LED Batten Lights IP44 600/1200/1500mm

These are ceiling batten lights with a slim design measuring only 23mm in height. The slim LED light comes in lengths of 2ft, 4ft, and 5ft. While they have a dust-proof rating of IP44, they are not suitable for outdoor use like weatherproof LED battens. However, they can be installed in specific outdoor locations such as corridors, balconies, tunnels, chemical laboratories, pharmacies, and similar environments.

  • Ref Model: LLS-TP-L Series
  • Length: 2ft 3ft 4ft 5ft
  • Wattage: 18W 26W 36W 45W
  • IP rated: IP44
  • Installation: Surface-mounted/wall-mounted
  • Control way: ON/OFF
  • Working temperature: -25/+55℃
  • Storage temperature: -30/+60℃
  • Warranty: 2/3 years
Category:

Description

Parameters

Order Model

Wattage

Dimension

Lumens

Color temperature

Beam angle

IP rating

Input voltage

DATASHEET
LLS-TP-2F2L 18W L620*W75*H23mm 1700-1800lm 3000K,400K,6500K 120° IP44 100-240VAC 50/60Hz Download
LLS-TP-4F2L 36W L1230*W75*H23mm 3500-3700lm 3000K,400K,6500K 120° IP44 100-240VAC 50/60Hz Download
LLS-TP-5F2L 45W L1530*W75*H23mm 4400-4600lm 3000K,400K,6500K 120° IP44 100-240VAC 50/60Hz Download

Specification

Materials & Finished

  • Body: Aluminum body, width 75mm
  • Cover: Frosted PC Cover.
  • LED Chips: Sumsang/Epistar SMD2835 chips, 100lm/W output, CRI80. LM80.
  • Driver: Non-isolated constant current driver, high power factor, and efficiency.
  • Accessories: Steel stainless surface parts.

Photometric Data

  • Led driver type: Constant current driver
  • Input voltage:100-240VAC 50/60Hz
  • Power Factor:>0.5 as standard, 0.9PF optional
  • CRI(Ra):>80
  • SDCM:<5
  • Efficiency:>88%
  • Color temperature: 3000K Warm white; 4500K Natural white, 6000K cool white.
  • Beam angle: 120°
  • LM80

    Options

    Application
