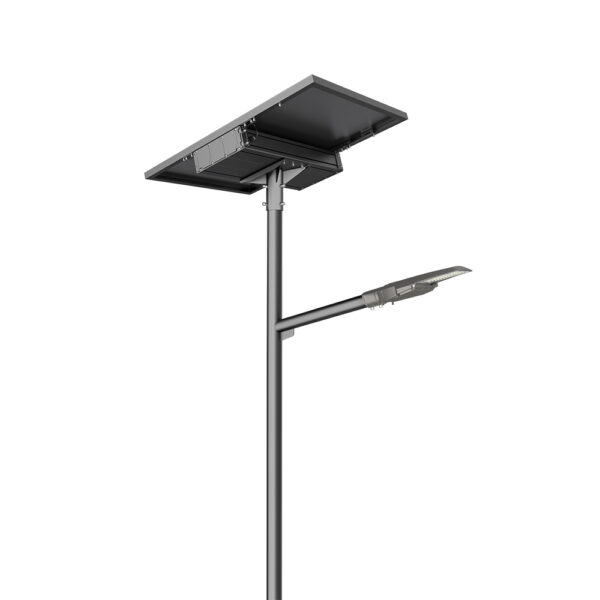

Series PV7 80-120W High Power AIO Solar Street Light

PV7 series AIO solar street lights lead the new trend of green lighting with excellent performance. Its battery compartment adopts a profile aluminum alloy shell, which is not only waterproof and durable, but also achieves efficient heat dissipation. The built-in high-energy density lithium-ion battery has a service life of up to 8 years. High-efficiency LED modules and a variety of light distribution curve designs enable PV7 to provide uniform lighting over a large area. PV7 series also supports a all in two design with a reasonable layout of solar panels to maximize the use of solar energy.

  • Watts: 80-120W
  • Light Efficiency up to 200lm/w
  • All in one design
  • MPPT smart controller featuring various dimming options
  • Lithium-ion battery with higher power density
  • Tailored solar street lighting solutions available
  • Adjustable LED module for aiming the target area
  • Support remote control to adjust configuration
  • CE , ROHS, IP66, MSDS certified
  • Integrated Motion/PIR Sensor for energy conservation
Category:

Description

Parameters

Series No

Power

Efficacy

Input Voltage

Battery Spec

Solar Panel Spec

IP Rating

IK Rating

CCT

CRI

Operating Temperature

Beam Angle

Series PV7 High Power AIO Solar Street Light 80W, 90W, 100W, 120W 200lm/W DC 12/24V 1536-2304WH Monocrystalline silicon 160W/180W/200W/240W IP66 IK10 2200K-6500K Ra>70 (Default) / Ra>80 -20°C to + 60°C Type II, Type III, Type V

Download

  • Specification_Series PV7 AIO Solar Street Light
  • Installation Manual_Series PV7 AIO Solar Street Light

Application



Series PV2 solar street light with motion sensor for bus stop lighting in Serbia

Series PV2 solar street light with motion sensor for bus stop lighting in Serbia

Series PV2 all in one led solar street light in the mountain in Costa Rica

Series PV2 all in one LED solar street light in the mountain in Costa Rica

Series PV2 All in one solar powered street lights for park lighting in UAE

Series PV2 All in one solar powered street lights for park lighting in UAE
