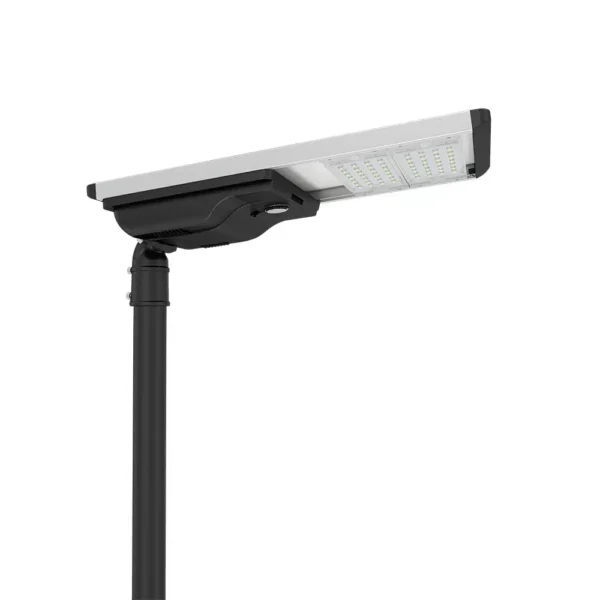

Series PV5 All in One Solar Street Light

PV5 series all in one solar street lamp features an integrated design, which combines the solar panel, lithium battery, controller, and LED light into a single unit. PV5 integrated solar street light achieves an overall illumination efficiency of 220lm/W. Its high luminous efficiency reduces power consumption while maintaining the same illumination, thereby significantly lowering the demands on solar panels and batteries which finally reduce the cost. Its monocrystalline silicon solar panel has a conversion efficiency of 23%, and lithium battery can withstand over 2000 charge-discharge cycles.

  • Watts: 10-120W
  • Light Efficiency up to 220lm/w
  • All in one design, easy for installation
  • Smart MPPT controller realizes intelligent control of lamps
  • 2.4G wireless communication which can realizes remote control
  • Deep cycle lithium battery(LiFePo4), charge and discharge over 2, 000 times
  • Monocrystalline silicon solar panels with high photoelectric conversion efficiency
  • CE, ROHS, IP66, MSDS certified
  • Smart Control: Daylight sensor, Motion/PIR sensor, Timer dimming
Category:

Description

Parameters

Series No

Power

Efficacy

Input Voltage

Battery Spec

Solar Panel Spec

IP Rating

IK Rating

CCT

CRI

Operating Temperature

Beam Angle

Series PV5 40W, 50W, 60W, 80W, 100W, 120W 220lm/W DC12/24V 230-691WH Monocrystalline silicon 65W/70W/100W/120W IP66 IK10 3000K, 4000K, 5000K, 5700K Ra>70 (Default) / Ra>80 -20°C to + 60°C Type II, Medium

Download

  • Specification_PV5 AIO Solar Street Light
  • Installation Manual_AIO Solar Street Light PV5

Application



solar powered led street lights

Series H solar powered led street lights in the amusement park in Mexico

solar powered street lamp

Series Rifle solar powered street lamp for crossroads lighting in Bulgaria

Series PV solar powered parking lot lights in amusement park in Thailand

Series PV solar powered parking lot lights in an amusement park in Thailand
