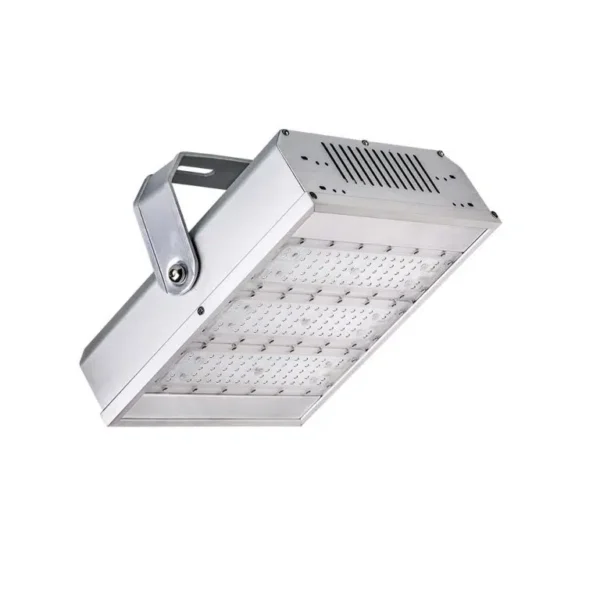

LLS Modular Design Led Tunnel Light

The LLS modular tunnel light is engineered for reliable performance in all types of tunnel and underpass environments, including roadway and railway applications. Its modular design ensures flexibility and ease of maintenance, making it a practical choice for large-scale lighting projects. Constructed with a durable low-copper aluminum housing and treated with a surface oxidation process, the Series H light offers excellent corrosion resistance and is built to withstand long-term exposure to salt fog and other harsh conditions. With an IP66 rating, it provides superior protection against dust and water, ensuring consistent performance in demanding environments.

Product Features

Watts: 40-240w
Light Efficiency up to 165lm/w
Protection class I or II
Modular design, easy maintenance
IP66&IK10
Wide choice of optics to suit more applications
CE, CB, ROHS certified.
Smart Control: 1-10V dimming, DALI control, Photocell, Motion sensor, Zigbee or Lora Control

Description

Parameters

Product Code

Power

Efficacy

Input Voltage

Power Factor

Surge Protection

Ingress Protection(IP)

IK Rating

CRI(Ra)

CCT

Operating Temperature

Beam Angle (deg)

Mounting Option

Warranty

Certification

Control

LLS

40W,50W, 60W,80W,100W, 120W,150W,160W, 180W,200W,240W

125-165lm/W

100-240/277 VAC, 50 / 60 Hz

>0.95

10KV (Build-in Driver) /Extra 10KV SPD (Available on request)

IP66

IK10

3000K, 4000K, 5000K, 5700K

Ra>70 (Default) / Ra>80

-40°C to + 50°C

TypeI, Medium;TypeII, Medium;TypeIII, Medium;TypeV, Short;

Bracket mounted

5 Years

CE, CB, ROHS, LM80, TM-21, ISTMT, IEC62471/62788

Photocell, DALI Dimmable, Motion Sensor, Non-Dimmable, 1-10V Dimmable, Zigbee or Lora Control

Downloads

Specification_H_TunnelLight
Installation Manual_TunnelLight_H

Application

Series H tunnel lamp used for Under the bridge lighting in Mexico

Series E led tunnel light for tunnel lighting and Series F led street light for lighting Tunnel entrance road in Hangzhou of China

Series Zoom LED flood light as tunnel lighting in Israel
