Rectangular Triple Led Downlights | Model: LLS-DLG-E

Rectangular Triple Led Downlights | Model: LLS-DLG-E

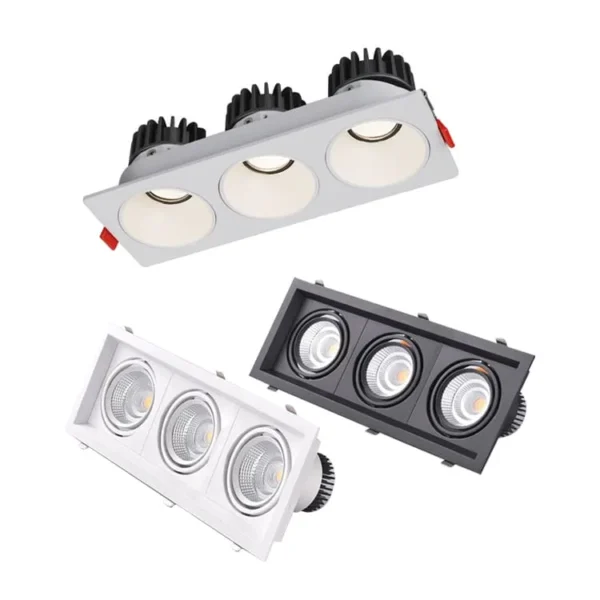

These LED downlights are rectangular in shape and with triple modules, including two different housing. Each module can be 7Watt, 10Watt, 15Watt, 20Watt, and 30W optional. Each module is a 25° adjustable design, allowing you to direct the light wherever you like. , so it is a good choice for commercial lighting solutions.

  • Shape: Rectangle
  • Adjustable: Yes
  • Body color: Matt white as standard; Matt black is optional.
  • Beam angle: 15/24°/38°
  • Adjustable angle: 25°
  • Control way: ON/OFF as standard, dimmable/Zigbee smart options
  • Mount type: recessed
  • Working temperature: -30/+60℃
  • Delivery time: 3-5days for samples, 7-15days for order
  • Compliance: CE RoHS Certified
  • Warranty:3/5 Years.
  • MOQ: 30PCS/model
Category:

Description

Parameters

Image Order model Wattage Dimension Cut out Lumens Reflectors Input voltage CRI(Ra) Power factor DATASHEET
adjustable triple spotlights GR-DLG-10WB*3 3*10W±5% L247*W88mm L238*W75mm 2800-3300lm White/black/silver/gold 110/220-240VAC >90 >0.9 Download
recessed triple downlight GR-DLG-7WE*3 3*7W±5% L330*W130mm L305*W105mm 1900-2100mm White/black 110/220-240VAC >90 >0.9 Download
recessed triple downlight GR-DLG-10WE*3 3*10W±5% L330*W130mm L305*W105mm 2700-3000lm White/black 110/220-240VAC >90 >0.9 Download
recessed triple downlight GR-DLG-15WE*3 3*15W±5% L375*W150mm L355*W125mm 4050-4500lm White/black 110/220-240VAC >90 >0.9 Download
recessed triple downlight GR-DLG-20WE*3 3*20W±5% L485*L180mm L465*L160mm 5400-6000lm White/black 110/220-240VAC >90 >0.9 Download
recessed triple downlight GR-DLG-30WE*3 3*30W±5% L485*L180mm L465*L160mm 8000-9000lm White/black 110/220-240VAC >90 >0.9 Download
