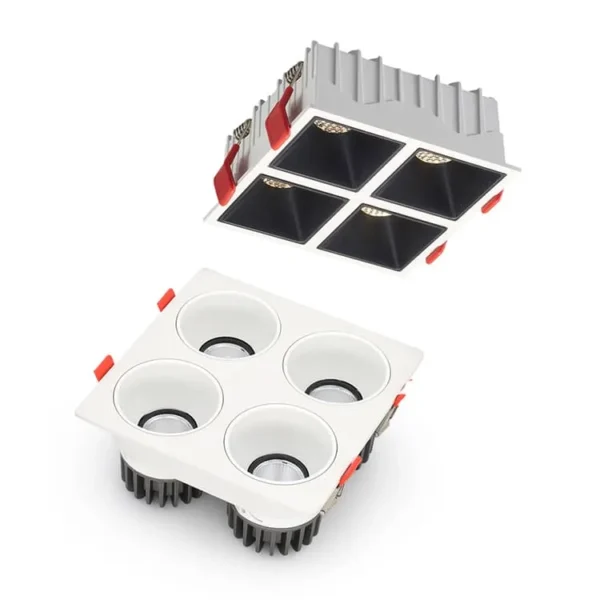

Recessed Multiple Led Downlights

Materials & Finished

• Heat sink: Die-cast aluminum heat sink, Black/white painted.
• Outer trim: Multiple designs, white trim as standard, black powder-coated optional.
• Reflectors: PMMA. White/Black as standard, silver/gun black options.
• Transformer: LIFUD Driver for 220-240VAC 50/60Hz; or DONE Driver for 100-277VAC 50/60Hz. Other brands like Philips/Osram are available as well.
• Led chips: Bridgelux COB LED Chips, Low SDCM Rating, highest brightness.
• Mounting Clips: Metal body, strong strength, easy to do the recessed installation
• Honeycomb: plastic, black color, it is not standard part, but it is optional.

Electrical & Optical

• Input voltage:100-277VAC 50/60Hz or 220-240VAC 50/60Hz.
• Power Factor:>0.5 or >0.9
• CRI:>90
• Lumens:90lm-100lm/W output.
• SDCM:<5
• Efficiency:>88%
• UGR:<15
• IP Grade: IP22 Indoor use
• Beam angle: 15/24°/36°
• Working life:>50000Hrs
• Working temperature:-25℃/+55℃
• Compliance: CE RoHS Certified
• Warranty:3/5 Years.
• Color temperature: 2700K-3000K Warm white, 4000-4500K Daylight, 6000-6500K cold white.

Options

• Phase triac dimmable driver / 0-10V dimmable driver or DALI dimmable driver to be dimmable downlights.
• Emergency kits ( 2-5Watt with 1-3hours duration)
• with Zigbee-led drivers to be smart downlights.
