Recessed Double LED Downlights 20W-70W

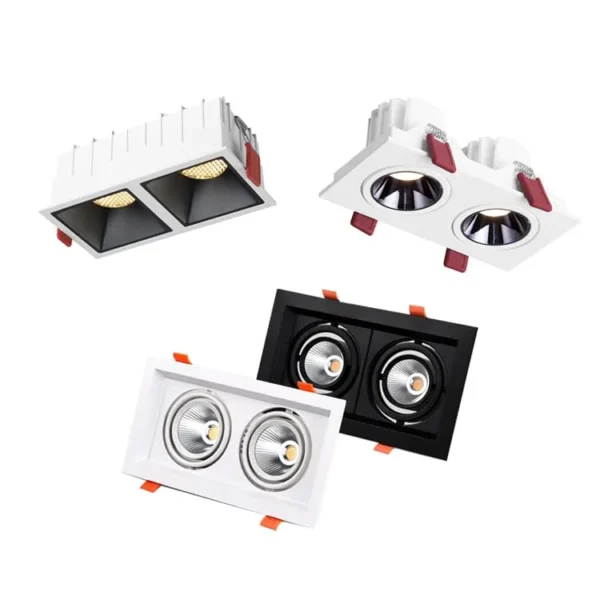

Four different housings for recessed double LED downlights with twin modules, one is fixed with square reflectors, and the other 3housings are an adjustable 25° direction design. They are all available in white/black light body options. Widely used for residential lighting for living rooms, kitchen rooms to replace E27 GU10 MR16 downlight fitting, and commercial lighting for offices, shopping malls, etc.

Modules qty: two
Mounting: Recessed into the ceiling
Shape: Rectangle
Body color: white as standard, matt black is optional
Reflector colors: Matt white, matt black, silver, gun black optional
Honeycomb: is optional
Working temperature: -25/+60℃
Control way: ON/OFF as standard, dimmable, or Zigbee smart options
Manufacturer warranty: 3/5 years
Certificates: CE RoHS
MOQ:30PCS/Model

Category: recessed multiple downlights

Description
Reviews (0)

Description

Parameters

Order model

Wattage

Images

Adjustable

UGR

Size(mm)

Cut out(mm)

Lumens

Beam angle

Color temperature

Input voltage

CRI(Ra)

DATASHEET

LLS-DLG-10WA*2

2*10W±5%

<17

L168*W85

L160*W75

1800-2200lm

15/24/36°

3000K, 4000K,6500K

110/220-240VAC

>90

Download

LLS-DLG-10WB*2

2*10W±5%

Yes

<17

L168*W85

L160*W75

1800-2200lm

15/24/36°

3000K, 4000K,6500K

110/220-240VAC

>90

Download

LLS-DLG-12WQ*2

2*12W±5%

Yes

<17

L168*W85

L160*W75

2200-2500lm

15/24/36°

3000K, 4000K,6500K

110/220-240VAC

>90

Download

LLS-DLG-10WE*2

2*10W±5%

Yes

<20

L230*W130

L210*W110

1800-2200lm

15/24/36°

3000K, 4000K,6500K

110/220-240VAC

>90

Download

LLS-DLG-15WE*2

2*15W±5%

Yes

<20

L260*W150

L245*W135

2800-3200lm

15/24/36°

3000K, 4000K,6500K

110/220-240VAC

>90

Download

LLS-DLG-20WE*2

2*20W±5%

Yes

<20

L335*W180

L315*W170

3800-4200lm

15/24/36°

3000K, 4000K,6500K

110/220-240VAC

>90

Download

LLS-DLG-30WE*2

2*30W±5%

Yes

<20

L335*W185

L315*W170

5800-6400lm

15/24/36°

3000K, 4000K,6500K

110/220-240VAC

>90

Download

LLS-DLG-35W*2

2*35W±5%

Yes

<20

L335*W185

L315*W170

6800-7200lm

15/24/36°

3000K, 4000K,6500K

110/220-240VAC

>90

Download

Specification

Materials & Finished

Heat sink: Die-cast aluminum heat sink, Black/white painted.
Outer trim: Multiple designs, white trim as standard, black powder-coated optional.
Reflectors: PMMA. White/Black as standard, silver/gun black options.
Transformer: LIFUD Driver for 220-240VAC 50/60Hz; or DONE Driver for 100-277VAC 50/60Hz. Other brands like Philips/Osram are available as well.
Led chips: Bridgelux COB LED Chips, Low SDCM Rating, highest brightness.
Mounting Clips: Metal body, strong strength, easy to do the recessed installation
Honeycomb: plastic, black color, it is not a standard part, but it is optional.

Electrical & Optical

Input voltage:100-277VAC 50/60Hz or 220-240VAC 50/60Hz.
Power Factor:>0.5 or >0.9
CRI:>90
Lumens:90lm-100lm/W output.
SDCM:<5
Efficiency:>88%
IP Grade: IP22 Indoor use
Beam angle: 15/24°/36°
Working life:>50000Hrs
Working temperature:-25℃/+55℃
Compliance: CE RoHS Certified
Warranty:3/5 Years.
Color temperature: 2700K-3000K Warm white, 4000-4500K Daylight, 6000-6500K cold white.

Options

Phase triac dimmable driver / 0-10V dimmable driver or DALI dimmable driver to be dimmable downlights.
Emergency kits ( 2-5Watt with 1-3hours duration)
with Zigbee-led drivers to be smart downlights.
