Description
Parameters
Order model |
Wattage |
Type |
Dimension |
Cut out |
Lumens |
CRI |
Color temp |
Input voltage |
Beam angle |
Datasheet |
| LLS-DL-10WL-01 | 10W | Fixed | L145*W45*H35mm | L140*W36mm | 950-1100lm | >90 | 3000k-6500k | 110/220-240VAC | 24°/ 36° | Download |
| LLS-DL-20WL-01 | 20W | Fixed | L282*W45*H35mm | L275*W36mm | 1800-2100lm | >90 | 3000k-6500k | 110/220-240VAC | 24°/ 36° | Download |
| LLS-DL-30WL-01 | 30W | Fixed | L415*W45*H35mm | L410*W36mm | 2800-3100lm | >90 | 3000k-6500k | 110/220-240VAC | 24°/ 36° | Download |
| LLS-DL-10WL-02 | 9W±5% | Adjustable | L158*W60*H45mm | L155*W50mm | 850-990lm | >90 | 3000k-6500k | 110/220-240VAC | 24°/ 36° | Download |
| LLS-DL-20WL-02 | 20W±5% | Adjustable | L294*W62*H38mm | L288*W50mm | 1700-1900lm | >90 | 3000k-6500k | 110/220-240VAC | 24°/ 36° | Download |
| LLS-DL-30WL-02 | 30W±5% | Adjustable | L430*W62*H38mm | L425*W51mm | 2700-3000lm | >90 | 3000k-6500k | 110/220-240VAC | 24°/ 36° | Download |
Description
Body & Finished
- Heat sink: Die-cast aluminum, matt white/black finish.
- Reflector: Polycarbonate plastic. Anti-UV. Black is standard, and white/gun black is optional.
- Transformer: Eagleries/LiFud brand as a standard, Osram/Philips optional
- Spring Clips: Metal body, strongest strength. Easy to do the recessed installation
Control Gear/ driver
- Brand: Eagleries/LiFud
- Input voltage:220-240VAC 50/60Hz
- Power factor:>0.5 as standard, >0.9 optional for a higher cost.
- Free flicker: Yes
- Efficiency:>87%
- Surge protection: 1KV
- THD:<20%
- Certificates: CE、CCC、CB、ENEC、RCM
- Warranty: 5 years
Optical
- Light source brand: Bridgelux as standard, Osram available
- Color rendering index:>90
- Lumens:120lm-140lm/W
- SDCM:<5
- Beam angle: 24° as standard 36° optional.
- Lifetime:>50000Hrs
- Low glare value: UGR<19
- Color temperature:2700-2900K; 3000-3200K; 4000-4500K; 5700-6000K; 6000-6500K
- Lumens maintenance: 99.9%@1000hrs/ 99%@3000hrs /98%@10000hrs. (LM80).
Application
- Residential lighting for living rooms, kitchen rooms, and bedrooms.
- Commercial lighting for offices, supermarkets, and shopping malls.
FAQ

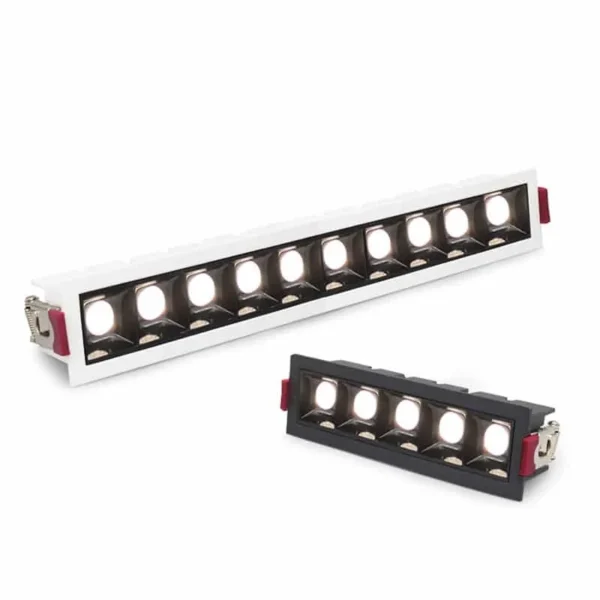

Q: What is linear recessed lighting?
A: Linear recessed lighting refers to a type of lighting fixture that is designed to be installed into ceiling or wall .They are long and narrow, providing a continuous line of illumination. And comes in various lengths to provide flexibility in terms of design. Thanks to its embedded installation, only the light source and a minimal trim visible, a clean and integrated look showing, linear recessed lighting are popular for modern indoor designs.
