Pull-Out Tiltable LED Downlight | Model: LLS-DLG-F

Pull-Out Tiltable LED Downlight | Model: LLS-DLG-F

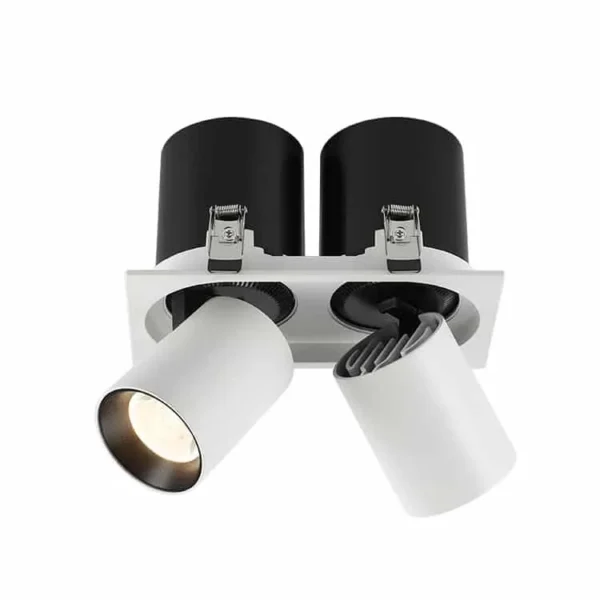

This pull out downlight boasts a 360° horizontal rotation and a 90° vertical adjustment for directional lighting. Its innovative design allows you to tilt the light direction to suit your preferences. The lamp body can be pulled out for localized lighting or hidden in the housing. When fully hidden, it functions like recessed square spotlights. When pulled out, it works as an adjustable spotlight. This retractable downlight is available in round and rectangular shapes to fit various settings. Widely used for both commercial and home lighting projects.

  • Order model: LLS-DLG-F Series
  • Shape: Square or round
  • Control way: ON/OFF, dimmable options if needed
  • Free flicker: Yes
  • Working life:>50000Hrs
  • Warranty: 3/5 years
  • Working temp: -25/+50℃
  • Storage temp: -30/+55 ℃
  • MOQ: 30pcs/model
  • Payment way: Paypal, Western Union, Bank transfer.
  • Lead time: 5-15days
  • Certificates: CE RoHS
Category:

Description

Parameters

Order model Wattage Dimension Cut out Lumens Color temperature Light Source CRI SDCM Input voltage DATASHEET
LLS-DLG-7WF 7W±5% Φ90*H80mm Φ80mm 630-700lm 3000K; 4000K;6500K COB >90 <5 110V/220-240VAC 50/60Hz Download
LLS-DLG-15WF 15W±5% Φ115*H105mm Φ100mm 1300-1500lm 3000K; 4000K;6500K COB >90 <5 110V/220-240VAC 50/60Hz Download
LLS-DLG-20WF 20W±5% Φ135*H125mm Φ125mm 1700-2000mm 3000K; 4000K;6500K COB >90 <5 110V/220-240VAC 50/60Hz Download
LLS-DLG-25WF 25W±5% Φ160*H125mm Φ145mm 2300-2600lm 3000K; 4000K;6500K COB >90 <5 110V/220-240VAC 50/60Hz Download
LLS-DLG-7WF*2 14W±5% L170*W90mm L155*W75mm 1150-1400lm 3000K; 4000K;6500K COB >90 <5 110V/220-240VAC 50/60Hz Download
LLS-DLG-15WF*2 30W±5% L210*W115mm L190*W95mm 2650-3000lm 3000K; 4000K;6500K COB >90 <5 110V/220-240VAC 50/60Hz Download
LLS-DLG-20WF*2 40W±5% L250*W140mm L230*W120mm 3500-4000lm 3000K; 4000K;6500K COB >90  <5 110V/220-240VAC 50/60Hz Download
LLS-DLG-25WF*2 50W±5% L303*W160mm L285*W145mm 4800-5500lm 3000K; 4000K;6500K COB >90 <5 110V/220-240VAC 50/60Hz Download
