Description
Parameters
| Order model | Wattage | Dimension | Lumens | Color temperature | Beam angle | Power Factor | CRI | IP Grade | Input voltage | DATASHEET |
| LLS-FM-10WF | 10W±5% | Φ75XH117mm | 900-1100lm | 3000K,4000K,6500K | 60° | >0.5 | >90 | IP65 | 110V/220-240VAC 50/60Hz | Download |
| LLS-FM-15WF | 15W±5% | Φ95*H128mm | 1300-1500lm | 3000K,4000K,6500K | 60° | >0.5 | >90 | IP65 | 110V/220-240VAC 50/60Hz | Download |
| LLS-FM-20WF | 20W±5% | Φ95*H128mm | 1800-2100mm | 3000K,4000K,6500K | 60° | >0.5 | >90 | IP65 | 110V/220-240VAC 50/60Hz | Download |
| LLS-FM-25WF | 25W±5% | Φ120*H150mm | 2300-2600lm | 3000K,4000K,6500K | 60° | >0.5 | >90 | IP65 | 110V/220-240VAC 50/60Hz | Download |
| LLS-FM-30WF | 30W±5% | Φ120*H150mm | 2800-3000lm | 3000K,4000K,6500K | 60° | >0.9 | >90 | IP65 | 110V/220-240VAC 50/60Hz | Download |
| LLS-FM-40WF | 40W±5% | Φ147*H180mm | 3800-4200lm | 3000K,4000K,6500K | 60° | >0.9 | >90 | IP65 | 110V/220-240VAC 50/60H | Download |
| LLS-FM-50WF | 50W±5% | Φ170*H200mm | 4700-5200lm | 3000K,4000K,6500K | 60° | >0.9 | >90 | IP65 | 110V/220-240VAC 50/60H | Download |
Specification
Body & Finished
- Housing Material: Aluminum body with high corrosion resistance and powdered paint.
- Housing color: Matte white/black colors are available.
- Lens/Reflector: Polycarbonate, matt white/ black optional, high-temperature resistance.
- Surface fitting: Metal materials. It is a surface installation by screws and is also available to do pendant installation by rope.
Control Gear / Led driver
- Led driver brand: Eagleries /DONE/ Suncom brand.
- Input voltage: 110/220V-240VAC 50/60Hz
- Free flicker: Yes
- PF:>0.5 as standard, >0.9 optional
- Surge protection:1KV
- THD:<20%
- Efficiency: >83%
- IP Grade: IP65
- Certificates: TUV, CE CB, ENEC
- Warranty: 3/5 years
Optical
- Light source brand: Bridgelux
- CRI:>90
- Color temperature: 3000-6500k
- SDCM:<5
- Lifetime:>100000Hrs
- LM80
Option
- Triac dimmable
- DC12V 24V 48V input voltage options
- with extra ropes to be pendant downlights.
Application
- Balcony
- Kitchen rooms
- Tolits
- Washroom
- Bathrooms
FAQ

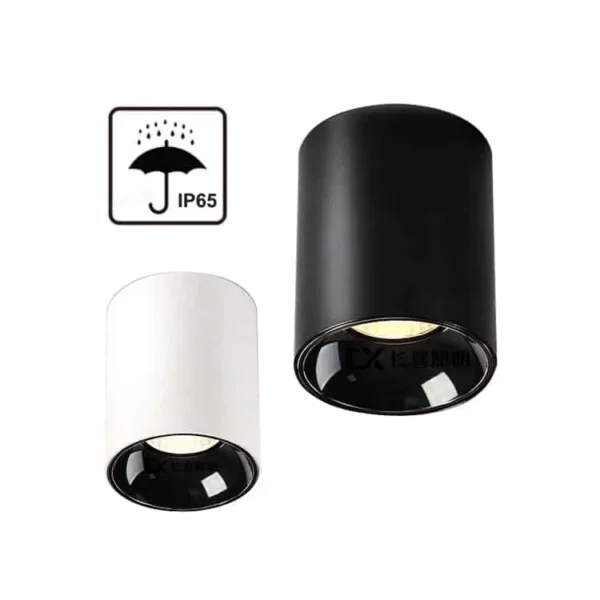

Q: What is cylinder light?
A: Cylinder light refers to a type of lighting fixture that has a cylindrical shape. There are surface mounted downlights, pendants, and wall-mounted cylinder lights. They can be made from various materials, such as aluminum, glass, or plastic, and are available in different finishes to match various interior or exterior styles.
Due to their cylindrical shape, they are well-suited for narrow spaces or areas where a more focused and controlled light beam is required.
Q: What downlights can I use outside?
A: LED downlights with IP65 or higher rating can be used outdoors. And you should choose a sealed design downlight with a durable material such as aluminum. Determine whether the downlights will be installed in a covered area, like a porch, or in an open space. This can impact the level of weather exposure and help you choose fixtures accordingly. So IP65 downlights can be used outdoors, but better installed in a covered area.
