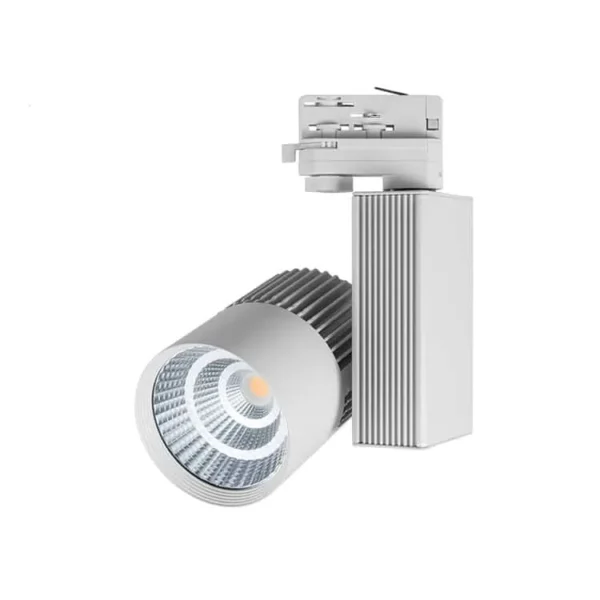

Description
Parameters
Product Code |
Wattage |
Dimension |
Lumens |
Color temperature |
Power factor |
CRI(Ra) |
SDCM |
Dimmable |
Input voltage |
DATASHEET |
| LLS-TL-20WB | 20W±5% | Φ100*150mm | 1900-2200lm | 3000K, 4000K,6500K | >0.5 | >90 | <5 | DALI/0-10V/Triac Dim | 110/120V-240VAC 50/60Hz | Download |
| LLS-TL-25WB | 25W±5% | Φ100*150mm | 2300-2500mm | 3000K, 4000K,6500K | >0.9 | >90 | <5 | DALI/0-10V/Triac Dim | 110/120V-240VAC 50/60Hz | Download |
| LLS-TL-30WB | 30W±5% | Φ100*150mm | 2750-3000lm | 3000K, 4000K,6500K | >0.9 | >90 | <5 | DALI/0-10V/Triac Dim | 110/120V-240VAC 50/60Hz | Download |
| LLS-TL-35WB | 35W±5% | Φ100*150mm | 3350-3500lm | 3000K, 4000K,6500K | >0.9 | >90 | <5 | DALI/0-10V/Triac Dim | 110/120V-240VAC 50/60Hz | Download |
Specification
Materials & Finished
- Heat sink: die-cast aluminum body, black/white powder-coated.
- Reflector: deep design, silver
- Driver box: Plastic as standard, metal optional
- Track head: Plastic
Photometric Data
- Control Gear brand: LiFud/Eagleries as standard
- Dimmable: Yes
- Dimmable type: DALI/0-10V/ Triac dimmable selectable
- Input voltage: 220-240VAC 50/60Hz
- THD:<15%
- Power Factor: >0.9
- Efficiency:>87%
- Certificates: CE TUV CB, ENEC
- Warranty: 3/ 5 years
Options
- Zigbee Intelligent control by Phone APP, Google Home, AMAZON Alexa.
- Low voltage input voltage DC12V/DC24V/DC36V/DC48V
Install & Wiring
Before installing the track lights, you must install the correct rails on the ceiling or wall, or you can hang the track. The 2-wire track head adapts to the 2-wire track strip, 3-wire 4-wire track strip corresponds to lamps with a 3-wire track head and 4-wire track head respectively.
- Triac dimmable track light wiring and installation (2 wires)
- 0-10V dimmable /DALI track light install and wiring ( 4 wires)
Application & Project Case
- Supermarkets
- Shopping mall
- Offices
- hotels, restaurants
- bars
