Description
Parameters
| Order model | Wattage | Dimension | Cut out | Lumens | Color temperature | Beam angle | UGR | CRI | Input voltage | Specification |
| LLS-DL-7WG-4 | 7W±5% | Φ85*H75mm | Φ70-75mm | 630-750lm | 3000K-6500K | 15/24/36/60° | <17 | >92 | 110/120-240VAC 50/60Hz | Download |
| LLS-DL-10WG-4 | 10W±5% | Φ85*H75mm | Φ70-75mm | 900-1100lm | 3000K-6500K | 15/24/36/60° | <17 | >92 | 110/120-240VAC 50/60Hz | Download |
| LLS-DL-15WG-4 | 15W±5% | Φ105*H103mm | Φ90-95mm | 1350-1600lm | 3000K-6500K | 15/24/36/60° | <17 | >92 | 110/120-240VAC 50/60Hz | Download |
| LLS-DL-20WG-4 | 20W±5% | Φ105*H103mm | Φ90-95mm | 1900-2200lm | 3000K-6500K | 15/24/36/60° | <17 | >92 | 110/120-240VAC 50/60Hz | Download |
| LLS-DL-30WG-4 | 30W±5% | Φ130*H125mm | Φ115-120mm | 2700-3200lm | 3000K-6500K | 15/24/36/60° | <17 | >92 | 110/120-240VAC 50/60Hz | Download |
Specification
Materials & Finished

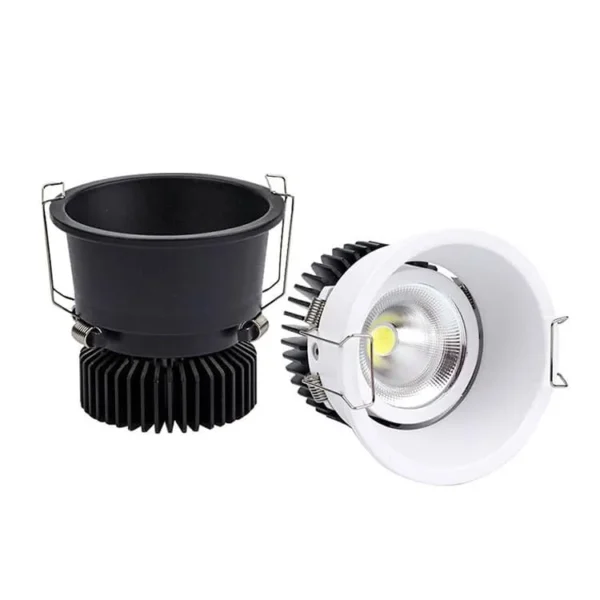

- Lighting body: Die-cast aluminum, black finish. Rotation 30°（adjustable beam angle）.
- Outer trim: aluminum body, with the choice of black or satin white powder-coated finish.
- Reflectors: deep design with low glare. silver (Chrome) finished. 15/24/36/60° beam angle optional
- Cover: Toughed glass cover, transparent/Frosted options.
- Mounting Clips: Robust metal springs, strongest strength. Easy to do the recessed installation
- Cables & wiring: cable with DC connector as standard, waterproof connectors available if needed.
Control gear/driver
- Control Gear brand: LiFud/ Eagleries brand as a standard, Osram/Philips brand optional.
- Working voltage:1110/220-240VAC 50/60Hz
- Output voltage: 36V DC
- Power Factor:>0.5 as standard, PF0.9 optional
- Efficiency:>88%
- IP Rated: IP20 indoor use
- IK Rating: IK08
- Surge protection:1-2KV
- Lifetime:>50000Hrs
- Working temperature:-25℃/+55℃
- Compliance: TUV CE CB ENEC RoHS Certified
- Warranty:3/5Years.
Optical data
- CRI(Ra):>92
- Lumens:90lm-120lm/W output.
- SDCM:<5
- UGR:<17 low glare
- Color temperature: 3000K Warm white; 45000K Natural white, 6000K cool white.
Option
- Dimming (Triac dimmable/ 1-10V/ DALI Dimmable)
- AC/DC12V/DC24V/DC36V/DC48W/60
- Emergency battery (30% wattage with 1hours 2hours 3hours duration)
Application
Commercial lighting/ residential lighting for hotel halls, Offices, Supermarkets, Hospitals, Schools, Shopping malls, bedrooms, kitchen rooms, etc.
