IP65 Led Tri-Proof Light Fixture 2ft/4ft/5ft/6ft/8ft

IP65 Led Tri-Proof Light Fixture 2ft/4ft/5ft/6ft/8ft

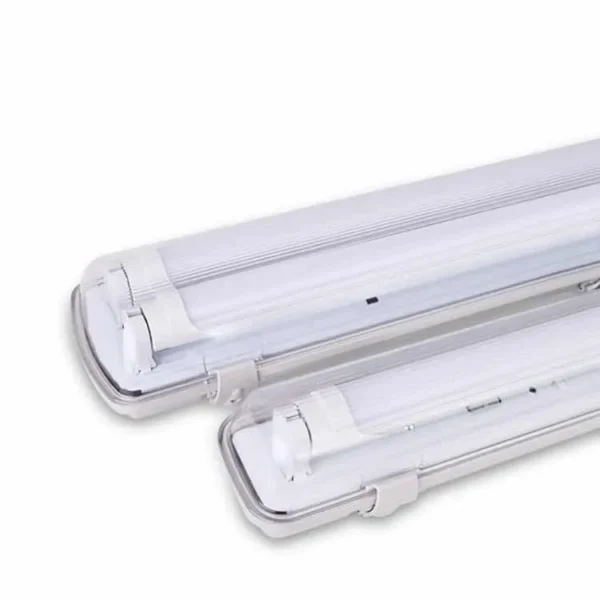

The LLS-TP-B Series LED Tri-proof light, also known as a waterproof batten light, is IP65, dustproof, and corrosion-resistant. It’s crafted using special anti-oxidation, anti-corrosion materials, and silicone seals to meet stringent protection standards. This ensures that dust and moisture are kept out effectively. These tri-proof fixture comes with single or double T8 LED Tube lights and can be installed either surface-mounted on the ceiling or suspended using steel ropes.

  • Ref model: LLS-TP-B Series
  • Length: 2ft 3ft 4ft 5ft 8ft (2400mm)
  • Light source: T8 LED Tube lights
  • Base: G13 2pins
  • Installation way: Surface mounted/ wall mounted/ suspended mounted
  • Control way: ON/OFF
  • Luminaire lumens:100lm/W
  • IP rate: IP65 waterproof
  • Power factor: >0.9
  • Dimmable: No
  • Working temperature:-25/+55℃
  • Origin: Made in India
  • MOQ: 100pcs/Model
Category:

Description

Parameters

Order model

Wattage

LED Tube light qty

Dimension

Lumens

Color temperature

Ik rating

IP Rate

Input voltage

DATASHEET
LLS-TP-2F1B 9W 1pcs*2ft T8 LED L656*W80*H90mm 900-1000lm 3000K,400K,6500K IK08 IP65 100-240VAC 50/60Hz Download
LLS-TP-4F1B 18W 1pcs*4ft T8 LED L1260*W80*H90mm 1800-1900lm 3000K,400K,6500K IK08 IP65 100-240VAC 50/60Hz Download
LLS-TP-5F1B 22W 1pcs*5ft T8 LED L1560*W80*H90mm 2200-2300lm 3000K,400K,6500K IK08 IP65 100-240VAC 50/60Hz Download
LLS-TP-2F2B 9W*2 2pcs*600mm T8 L656*W115*H90mm 1900-2000lm 3000K,400K,6500K IK08 IP65 100-240VAC 50/60Hz Download
LLS-TP-4F2B 18W*2 2pcs*1200mm T8 L1256*W115*H90mm 3600-3700lm 3000K,400K,6500K IK08 IP65 100-240VAC 50/60Hz Download
LLS-TP-5F2B 22W*2 2pcs*1500mm T8 L1560*W115*H90mm 4400-4500lm 3000K,400K,6500K IK08 IP65 100-240VAC 50/60Hz Download

Specification

Materials & Finished

  • Bottom housing: ABS materials as a standard, fireproof, flame retardant.
  • Cover: Strip PC Cover shade as standard, the PS cover is optional as well.
  • LED Tube light: T8 LED Tube included, aluminum body+PC Cover.
  • LED Chips: Epistar SMD2835 chips, 100lm/W output, CRI80. LM80.
  • Driver: Non-isolated constant current driver, high power factor, and efficiency.
  • Clip: plastic clips as a standard, steel stainless clips are available.
  • Surface-mounted part: Included

Photometric Data

  • Input voltage:100-265VAC 50/60Hz
  • Power Factor:>0.9
  • CRI(Ra):>80
  • SDCM:<5
  • Efficiency:>88%
  • IP Rating: IP65 indoor use
  • IK Rating: IK08
  • Color temperature: 3000K Warm white; 4500K Natural white, 6000K cool white.
  • Beam angle: 120°
  • Lifetime:>50000Hrs
  • Working temperature:-30℃/+55℃
  • Compliance: CE RoHS Certified
  • Warranty:2/3Years.
