Description
Parameters
Order model |
Wattage |
Inch |
Dimension |
Cut out |
Lumens |
Color temperature |
CRI |
Input voltage |
DATASHEET |
| LLS-DL-10WG-02 | 10W±5% | 3inch | Φ90*H100mm | Φ70-75mm | 930-1100lm | 3000K; 4000K; 6500K | >90 | 100/220-240VAC 50/60Hz | Download |
| LLS-DL-15WG-02 | 15W±5% | 4inch | Ø110*H135mm | Φ90-95mm | 1300-1600lm | 3000K; 4000K; 6500K | >90 | 100/220-240VAC 50/60Hz | Download |
| LLS-DL-20WG-02 | 20W±5% | 5inch | Ø130*H135mm | Φ110-120mm | 1800-2100mm | 3000K; 4000K; 6500K | >90 | 100/220-240VAC 50/60Hz | Download |
| LLS-DL-25WG-02 | 25W±5% | 5inch | Ø130*H135mm | Φ110-120mm | 1350-2600lm | 3000K; 4000K; 6500K | >90 | 100/220-240VAC 50/60Hz | Download |
| LLS-DL-30WG–2 | 30W±5% | 6inch | Ø165*H170mm | Φ145mm | 2800-3200lm | 3000K; 4000K; 6500K | >90 | 100/220-240VAC 50/60Hz | Download |
| LLS-DL-35WG-02 | 35W±5% | 6 inch | Ø165*H170mm | Φ145mm | 3300-3600lm | 3000K; 4000K; 6500K | >90 | 100/220-240VAC 50/60Hz | Download |
Specification

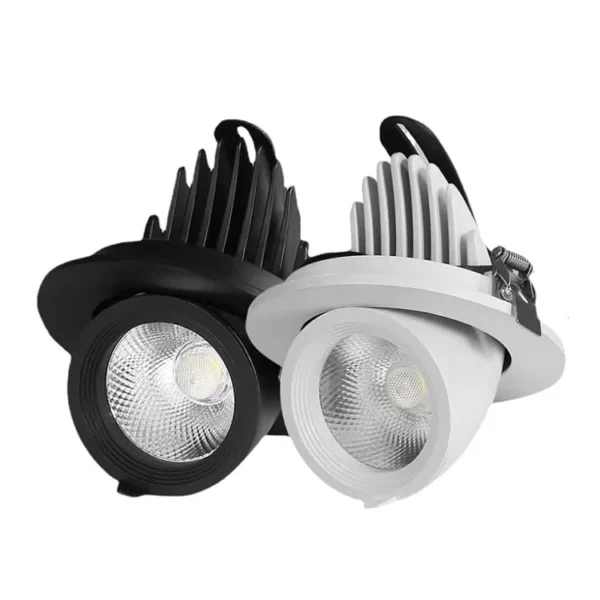

Body & Finished
- Aluminum shell (housing): White/black powdered finish,aluminum body, won’t turn yellow even after long-term use
- Lens/Diffuser: Polycarbonate lens. The good condensing effect, uniform light.
- Led driver: Isolated driver, stable quality with plastic box, it is working for 16 hours each day for commercial area.
- Light source: Bridgelux COB as standard, CREE/CITIZEN available if needed.
- Spring Clips: Metal body, strongest strength. Easy to do the recessed installation
- Cables & wiring: UL approval #22AWG electrical cables with DC Female or male connectors, very easy to be wiring. It is ok to be an extra junction box if needed.
Electrical & Optical
- Working voltage:100/220-265VAC 50/60Hz or 220-240VAC 50/60Hz.
- Power Factor:>0.6 or >0.9
- CRI(Ra):>90
- Lumens:90lm-100lm/W output.
- SDCM:<5
- Efficiency:>88%
- IP Rating: IP22 Indoor use
- IK Rating: IK07
- Color temperature: 3000K Warm white; 45000K Natural white, 6000K cool white.
- Beam angle: 24° Narrow distribution
- Working temperature:-25℃/+55℃
- Compliance: CE RoHS Certified
Options
- Zigbee smart controller for Phone APP, Google Home, and AMAZON Alexa.
- Dimming (Triac /0-10V/DALI Dimmable)
- Low voltage input voltage DC12V/DC24V/DC36V/DC48W
- Emergency (30% power with 1hours 2hours 3hours last)
Installation
This gimble directional downlight can be installed directly from the box into a wide range of ceiling types including thicknesses from 5mm-40mm. please refer to the hole size of the specific luminaire and make a round hole in the ceiling. Then use clips to fix it.
FAQ
Q: What is a gimbal in lighting?
A: Gimbal means LED lamp structure can adjust the irradiation angle horizontally and vertically, and is often matched with adjustable or eyeball trim. This gimble design can be used as basic lighting, or as a wall washer downlight for focus lighting.
Q: When should I use gimbal recessed led downlight?
A: It is very suitable for residential use in bedrooms, kitchens, living rooms, and dining rooms, or commercial spaces to be clothing stores lighting, and hotels lighting, offices lighting.
