Description
Parameters
Order Model |
Wattage |
Dimension |
LED QTY |
Lumens |
CRI(Ra) |
PF |
Color Temperature |
Installation |
Input voltage |
Datasheet |

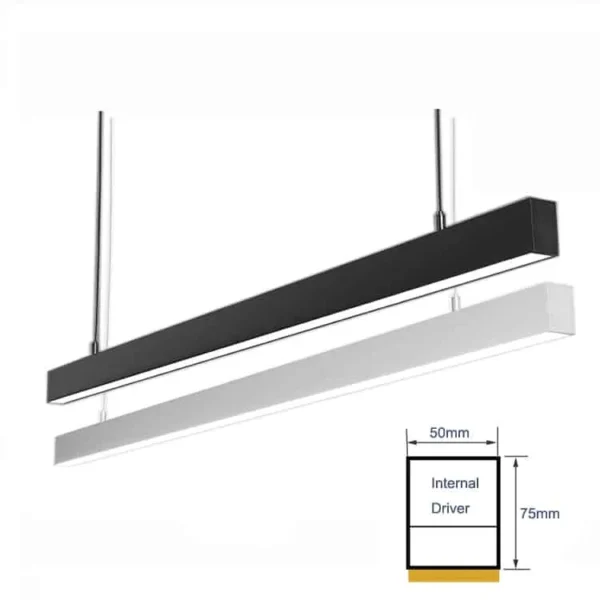

| LLS-LS5075-600 | 18W | L600*W50*H75mm | 96pcs SMD2835 | 1800-2000lm | >80 | >0.92 | 3000K4000K6500K | Pendant/ Surface mounted | 100-240VAC 50/60Hz | Download |
| LLS-LS5075-1200 | 36W | L1200*W50*H75mm | 192pcs SMD2835 | 3800-4100lm | >80 | >0.92 | 3000K4000K6500K | Pendant/ Surface mounted | 100-240VAC 50/60Hz | Download |
| LLS-LS5075-1500 | 48W | L1500*W50*H75mm | 240pcs SMD2835 | 4800-5000lm | >80 | >0.92 | 3000K4000K6500K | Pendant/ Surface mounted | 100-240VAC 50/60Hz | Download |
| LLS-LS5075-2400 | 72W | L2400*W50*H75mm | 382pcs SMD2835 | 7200-7600lm | >80 | >0.92 | 3000K4000K6500K | Pendant/ Surface mounted | 100-240VAC 50/60Hz | Download |
Specification
Materials & Finished
- 3000K, 4500K, 6500K color options.
- Power factor reaches 0.9, meets various domestic and foreign standards, safe and secure.
- Lifetime up to 50000Hrs, durable, economical, and energy-saving.
- The CRI is higher than traditional lamps. It will be better to show the true color of the object can be restored.
- No flicker (there is no wave when you take photos for these linear led lighting)
- It is seamless splicing to do linear lighting system
Photometric Data
- Power Factor:>0.92
- Color rendering index:>80
- Lumens:100lm/W
- SDCM:<5
- Efficiency:>89%
- Dimmable: No
- IP Rating: IP22 Indoor use
- Beam angle: 120°
- Color temperature: 3000K Warm white /4000K daylight/6500K cool white.
- Working temperature:-25℃/+60℃
- Compliance: CE RoHS Certified
- Manufacturer Warranty:2/3/5Years
