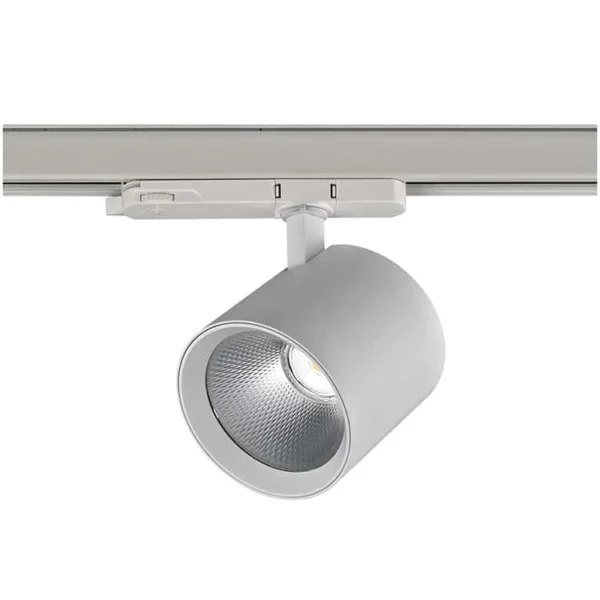

Description
Parameters
Product Code |
Wattages |
Dimension |
Lumens |
Color temperature |
CRI |
Beam angle |
PF |
Input voltage |
Track Heads |
Datasheet |
| LLS-TL-15WF | 15W±5% | Φ90*90mm | 1500-1800lm | 3000K,4000K,6000K | >92 | 15/24/36/60° | >0.9 | 220-240VAC 50/60Hz | 2/3/4/6 wires track heads | Download |
| LLS-TL-20WF | 20W±5% | Φ90*90mm | 2000-2600lm | 3000K,4000K,6000K | >92 | 15/24/36/60° | >0.9 | 220-240VAC 50/60Hz | 2/3/4/6 wires track heads | Download |
| LLS-TL-25WF | 25W±5% | Φ100*100mm | 2500-3000lm | 3000K,4000K,6000K | >92 | 15/24/36/60° | >0.9 | 220-240VAC 50/60Hz | 2/3/4/6 wires track heads | Download |
| LLS-TL-30WF | 30W±5% | Φ100*100mm | 3000-3600lm | 3000K,4000K,6000K | >92 | 15/24/36/60° | >0.9 | 220-240VAC 50/60Hz | 2/3/4/6 wires track heads | Download |
| LLS-TL-40WF | 40W±5% | Φ100*106mm | 4000-4800lm | 3000K,4000K,6000K | >92 | 15/24/36/60° | >0.9 | 220-240VAC 50/60Hz | 2/3/4/6 wires track heads | Download |
Specification
Materials & Finished
- Body: Pure aluminum, matt black/ white powder-coated
- Reflector: PC, silver finished, low glare, beam angle includes 15/24/36/60° reflectors.
- Track adapter: Plastic
Photometric Data
- Brand: ALLOOKING/ LIFUD/ Eagleries OSRAM driver
- Type: In Track driver
- Input voltage: 220-240VAC 50/60Hz
- PF:>0.9
- Efficiency:>88%
- THD: <15%
- Free flicker: Yes
- IP grade: IP20
- Certificates: CE ENEC TUV ROHS CB
- Warranty: 3/5 years
Options

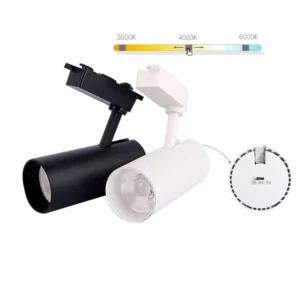

- Tunable white track light.
- PWM /0-10V/DALI Dimmable track light
Install & Wiring
Before installing the track lights, it is essential to correctly mount the rails on the ceiling or wall, or choose to suspend the track. The 2-wire track head is designed for use with the 2-wire track strip, while the 3-wire and 4-wire track strips correspond to lamps equipped with 3-wire and 4-wire track heads, respectively. For detailed installation instructions, please refer to the provided PDF file for the installation guide.
