Description
Parameters
Order Model |
Wattages |
Dimension |
Cut out |
Lumens |
Beam angle |
Color temperature |
CRI |
IP Rating |
Input voltage |
Datasheet |
| LLS-DL-7WB-05 | 7W±5% | Φ62*H45mm | Φ55mm | 630-730lm | 24/36/60° | 3000K,4000K,6000K | >92 | IP44 | 110/220-240VAC 50/60Hz | Download |
| LLS-DL-10WB-05 | 10W±5% | Φ82*H54mm | Φ75mm | 950-1100lm | 24/36/60° | 3000K,4000K,6000K | >92 | IP44 | 110/220-240VAC 50/60Hz | Download |
| LLS-DL-15WB-05 | 15W±5% | Φ102*H62mm | Φ95mm | 1400-1600lm | 24/36/60° | 3000K,4000K,6000K | >92 | IP44 | 110/220-240VAC 50/60Hz | Download |
| LLS-DL-20WB-05 | 20W±5% | Φ130*H70mm | Φ120mm | 1900-2100lm | 24/36/60° | 3000K,4000K,6000K | >92 | IP44 | 110/220-240VAC 50/60Hz | Download |
| LLS-DL-25WB-05 | 25W±5% | Φ130*H70mm | Φ120mm | 2400-2550lm | 24/36/60° | 3000K,4000K,6000K | >92 | IP44 | 110/220-240VAC 50/60Hz | Download |
Specification

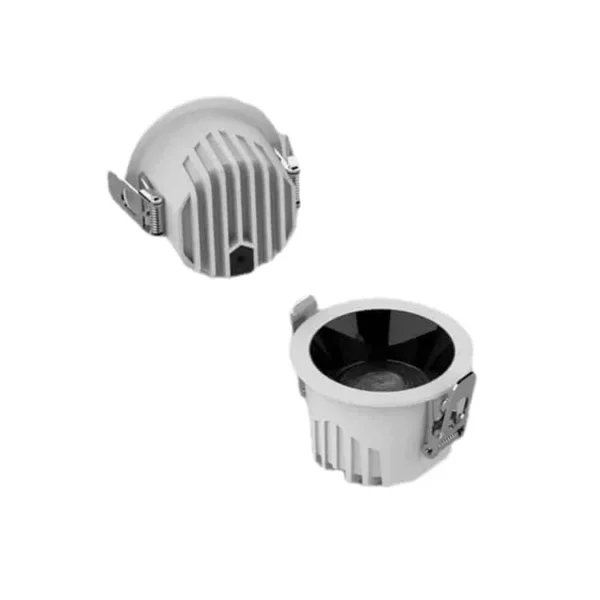

Materials & Finished
- Housing: aluminum, matt white as standard, matt black is available
- Reflector: PMMA materials, and white/black reflectors are optional.
- Springs/Clips: Steel, high strength to fix onto the ceiling.
Control Gear / Led driver
- Driver brand: Guanx/LiFud/Eagleries are optional.
- Input voltage: 110/220-240VAC 50/60Hz
- Output Voltage: 36VDC
- Free flicker: Yes
- Power factor:>0.5 or >0.9
- Dimmable: No.
- THD:<15%
- Efficiency:>88%
- IP Rating: IP22
- Certificates: CE RoHS ENEC CB
- Warranty: 3/5Years
Optical
- Light source brand: Bridgelux as standard, Osram available
- Color rendering index:>90
- Lumens:100lm-120lm/W output.
- SDCM:<3
- Lifetime:>50000Hrs
- Color temperature:2700-2900K; 3000-3200K; 4000-4500K; 5700-6000K; 6000-6500K
- Lumens maintenance: 99.9%@1000hrs/ 99%@3000hrs /98%@10000hrs. (LM80).
