Description
Parameters
Order Model |
Wattage |
Dimension |
Lumens |
CRI(Ra) |
Power factor |
UGR |
Color Temperature |
Input voltage |
Datasheet |
| LLS-PL3030-18WD | 18W±5% | 295*295*32mm | 1800-2200lm | >80 | >0.5 | <20 | 3000K4000K6500K | 110/220-277VAC 50/60Hz | Download |
| LLS-PL6030-24WD | 24W±5% | 595*295*32mm | 2400-2900lm | >80 | >0.5 | <20 | 3000K4000K6500K | 110/220-277VAC 50/60Hz | Download |
| LLS-PL6060-36WD | 36W±5% | 595*595*32mm | 3600-4400lm | >80 | >0.9 | <20 | 3000K4000K6500K | 110/220-277VAC 50/60Hz | Download |
| LLS-PL6060-40WD | 40W±5% | 595*595*32mm(standard) 603*603*32mm(USA) 620*620*32mm(Germany) |
4000-4800lm | >80 | >0.9 | <20 | 3000K4000K6500K | 110/220-277VAC 50/60Hz | Download |
| LLS-PL6060-48WD | 48W±5% | 595*595*32mm | 4800-5900lm | >80 | >0.9 | <20 | 3000K4000K6500K | 110/220-277VAC 50/60Hz | Download |
| LLS-PL-6060-60WD | 60W±5% | 595*595*32mm | 6000-7200lm | >80 | >0.9 | <20 | 3000K4000K6500K | 110/220-277VAC 50/60Hz | Download |
| LLS-PL12030-40WD | 40W±5% | 1195*295*32mm(standard) 1213*301*32mm(USA) |
4000-4800lm | >80 | >0.9 | <20 | 3000K4000K6500K | 110/220-277VAC 50/60Hz | Download |
| LLS-PL12060-50WD | 50W±5% | 1195*295*32mm(standard) 1213*603*32mm(USA) |
5000-6000lm | >80 | >0.9 | <20 | 3000K4000K6500K | 110/220-277VAC 50/60Hz | Download |
| LLS-PL12060-60WD | 60W±5% | 1195*295*32mm(standard) | 6000-7200lm | >80 | >0.9 | <20 | 3000K4000K6500K | 110/220-277VAC 50/60Hz | Download |
| LLS-PL12060-72WD | 72W±5% | 1195*295*32mm(standard) | 7200-8200lm | >80 | >0.9 | <20 | 3000K4000K6500K | 110/220-277VAC 50/60Hz | Download |

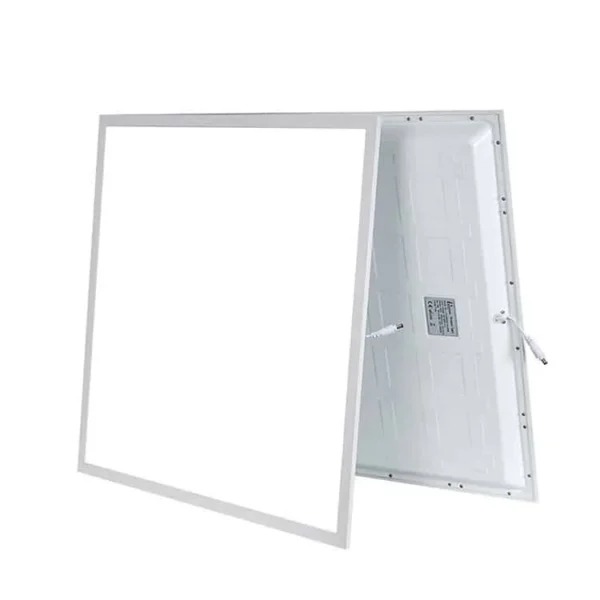

Specification
Materials & Finished
- Heat sink (Housing): Metal bottom, 2.5mm thickness-3mm thickness, white finished.
- Frame: Square-shaped aluminum trim, strip/flat type, white finished as standard, black/silver option.
- Diffuser/cover: Polystyrene PS Cover, 1.0mm thickness, High-temperature resistance, no yellowing, high light transmittance.
- Lens: High temperature resistant optical lens, uniform light emission
- PCB: High thermal conductivity aluminum substrate
- Light source: Bridgelux/Samsung SMD LED Chips, 100lm-120lm/W output.

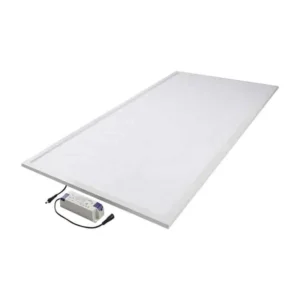

- Transformer: Non-dimmable external isolated driver, Over-voltage, over-temperature, anti-surge protection.
Photometric Data
- Input voltage:110/220-265VAC 50/60Hz
- Power Factor:>0.9
- LED Chips: SMD2835
- Color rendering index:>80 or >90
- Lumens:100lm-120lm/W
- THD:<15%
- Surge protection:1-2KV
- SDCM:<5
- Efficiency:>89%
- Beam angle: 120° wide
- Color temperature: 3000K/4000K/6500K
Options
- Selecting TRIAC/0-10V/DALI dimmable driver to be dimmable led panel lights.
- Emergency backup (30% power with 1hrs 2hrs or 3Hours duration)
- Edge-lit 600×600 panel light
Install & Wiring
- Recessed installation is A standard version, just put it onto the ceiling, easy to install.
- Suspension installation is available, but the steel ropes for hanging need to be ordered additionally.
- Surface-mounted installation is ok with extra surface frame fitting.
- Clip installation with springs is available, tell our sales if you request this.
Application & Project Case
Commercial lighting projects, including offices, meeting rooms, supermarkets, schools, and hospitals
