Adjustable Beam Angle Track Light

Adjustable Beam Angle Track Light

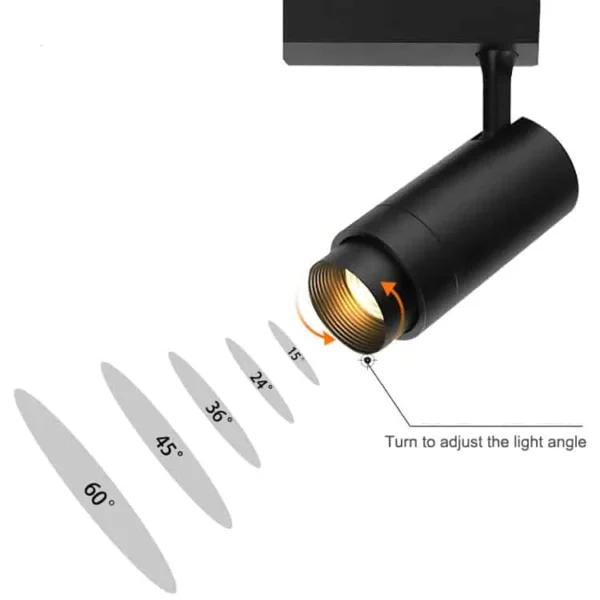

LLS-TL-D Series track light boasts an adjustable beam angle facilitated by the rotation of the front ring. This single light offers four beam angles – 15°, 24°, 38°, and 60° – providing versatile lighting options. Additionally, the light head can be rotated 360° or 90°, enhancing flexibility in directing light.
Designed for both basic and localized lighting needs, this track lighting fixture is particularly well-suited for high-end commercial spaces like museums, supermarkets, and clothing stores. The fixture is crafted using CRI90 COB LED Chips and a reliable LiFud Brand driver, ensuring a long-lasting performance with minimal maintenance concerns.

  • Track head: 2 wires (1 circuit) as standard; 4wires ( 3 circuits) optional.
  • Power: 10W 15W 20W 25W 30Watt
  • Beam Angle: 15/24/38/60°adjustable
  • Control way: ON/OFF as standard; Triac/0-10V/DALI options
  • Working temperature:-25℃/+55℃
  • Lifetime: 50000hrs
  • Warranty: 3/5 years
  • Certificate: CE RoHS
  • MOQ: 30pcs/model
Category:

Description

Parameters

Product Code

Wattage

Dimension

Lumens

Color temperature

SDCM

CRI(Ra)

Track head

Beam angle

Input voltage

DATASHEET
LLS-TL-10WD 10W±5% Φ55*135mm 900-1100mm 3000K 4000K 6000K <5 >90 2/3/4wires Adjustable from 15° to 60° 110/220-240VAC 50/60Hz Download
LLS-TL-15WD 15W±5% Φ65*165mm 1350-1600lm 3000K 4000K 6000K <5 >90 2/3/4wires Adjustable from 15° to 60° 110/220-240VAC 50/60Hz Download
LLS-TL-20WD 20W±5% Φ75*170mm 1800-2200lm 3000K 4000K 6000K <5 >90 2/3/4wires Adjustable from 15° to 60° 110/220-240VAC 50/60Hz Download
LLS-TL-25WD 25W±5% Φ75*170mm 2300-2600lm 3000K 4000K 6000K <5 >90 2/3/4wires Adjustable from 15° to 60° 110/220-240VAC 50/60Hz Download
LLS-TL-30WD 30W±5% Ø80*L200mm 2800-3200lm 3000K 4000K 6000K <5 >90 2/3/4wires Adjustable from 15° to 60° 110/220-240VAC 50/60Hz Download

Specification

Materials & Finished

  • Housing (heat sink): Aluminum body, black/ white powder coated. The internal radiator and the shell are integrally die-casted, and the heat dissipation effect is more.
  • Front ring: Aluminum ring, rotation for changing the beam angle.
  • Lens/reflector: Optical lens, good secondary light distribution effect
  • LED Power Supply: DONE driver or LIFUD driver as standard. Philips/Osram driver option.
  • Light source: Bridgelux LED COB chips with gold wires & copper brackets, top quality.
  • Track heads: Plastic body, white/black finished, 2 wires track head as standard, the 3wires or 4 wires(3-circuits) can be optiona

Photometric Data

  • Input voltage:100-265VAC 50/60Hz or 220-240VAC for LIFUD /Philips
  • Power Factor:>0.5 for DONE; >0.9 for LIFUD/Philips/Osram driver
  • Color rendering index:>90
  • Lumens:90lm-100lm/W output.
  • SDCM:<3
  • Efficiency:>88%
  • Color temperature: 3000K/4000K/6500K
  • Compliance: CE RoHS Certified
  • Manufacturer Warranty:3/5Years.

    Options

    • Zigbee Intelligent control by Phone APP, Google home, AMAZON Alexa.
    • Dimming ( selecting the triac dimmable or 0-10V, DALI dimmable driver to be dimmable track lights)
    • 3Phases(4Wires)

    Install & Wiring

    Before installing the track spot light, first reserve the wiring position, then punch a mounting hole in the ceiling, connect the power cord to the track light, and wrap the insulating tape, then use a screwdriver and screws to fix the light and the track, and Adjust the illumination direction of the lamp. After installation, you can turn on the track light to check its lighting effect.
