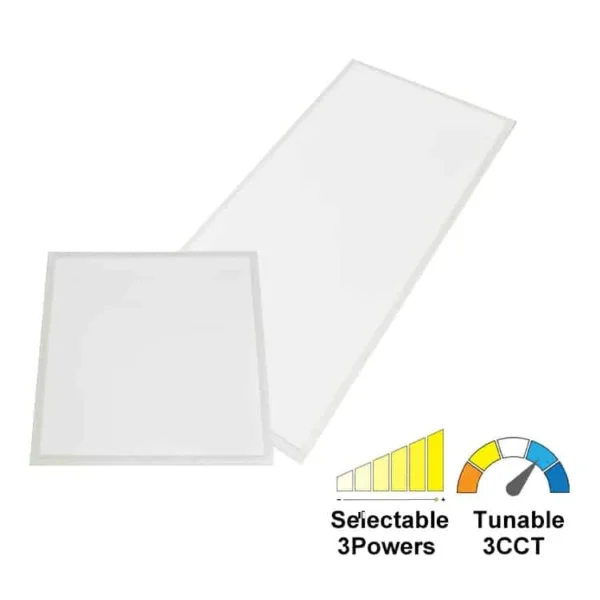

Description
Parameters
Product Code |
Wattage Selectable |
Dimension |
Lumens |
CRI(Ra) |
Power factor |
Color Temperature |
Input voltage |
Datasheet |
| LLS-PL6030-24WD (CCT) | 24W-20W-18W | 295*595*32mm | 100-120lm/W | >80 or 90 | >0.9 | 3000K4000K 5000K selectable by DIP switch | 110/220-240V/277vAC 50/60Hz | Download |
| LLS-PL6060-40WD (CCT) | 40W-30W-25W | 595*595*32mm(standard) 603*603*32mm(USA) 620*620*32mm(Germany) |
100-120lm/W | >80 or 90 | >0.9 | 3000K4000K 5000K selectable by DIP switch | 110/220-240V/277vAC 50/60Hz | Download |
| LLS-PL12030-40WD(CCT) | 40W-30W-25W | 1195*295*32mm(standard) 1213*301*32mm(USA) |
100-120lm/W | >80 or 90 | >0.9 | 3000K4000K 5000K selectable by DIP switch | 110/220-240V/277vAC 50/60Hz | Download |
| LLS-PL12060-60WD (CCT) | 60W-50W-40W | 1195*595*32mm(standard) 1213*603*32mm(USA) |
100-120lm/W | >80 or 90 | >90 | 3000K4000K 5000K selectable by DIP switch | 110/220-240V/277vAC 50/60Hz | Download |
Specification
Materials & Finished
- A heat sink (Housing): Metal bottom, 2.5mm thickness-3mm thickness, Matt white as standard, Matt black optional.
- Diffuser/cover: Polystyrene PS Cover.
- Lens: High temperature resistant optical lens, uniform light emission
Photometric Data
- Brand: LiFud/Eagleries/OSRAM/PHILIPS/ ZY with DIP Switch for power selectable and color temperature selectable.
- Input voltage:220-240VAC for European markets, 100-277VAC for USA and CA markets 50/60Hz
- Power Factor:>0.9
- Efficiency:>88%
- Surge protection:1-2KV
- Type: ON/OFF as standard. but for USA/CA, it is ok to be 0-10V dimmable panel light with selectable powers and CCT.
- Working life:>50000Hrs
- IP Rate: IP44
- Certificates: CE ENEC TUV CB ETL
- Warranty: 3/5years
Optical
- LED Chips: SMD2835
- Color rendering index:>80 or >90
- Lumens:100-120lm/W
- SDCM:<5
- Color temperature: 3000K/4000K/5000/6500K
Options
- Emergency backup (30% power with 1hrs 2hrs or 3Hours duration)
- Surface mounted frame and suspended ropes for hanging installation.
Install & Wiring
- Recessed installation is A standard version, just put it onto the grid ceiling, easy installation.
- Suspension installation is available, but the steel ropes for hanging need to be ordered additionally.
Application & Project Case
Commercial lighting projects, including offices, meeting rooms, supermarkets, schools, and hospitals
